stainless steel blind rivets

We offer Stainless Steel Open-end Blind Rivets with the 304 Stainless Steel body and Stainless Steel/Steel mandrel. This Blind Rivets are appropriate for outdoor applications and for applications where the rivet is exposed to intermittent wetting. It also have the high shear and tensile. The bodies of our Stainless Steel Blind Rivets are fabricated by cold-heading, offering superior strength and excellent appearance.

E-mail:sale@gd-luowei.com

Tel:+86-18927775237

Send Email Inquiry Now

Technical Parameter

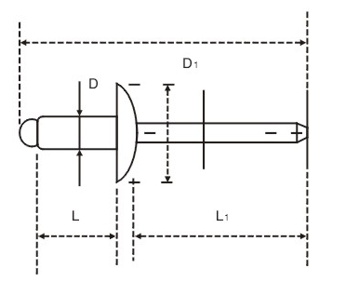

D Rivet Body Dia （mm）	L Rivet Body Lenghth (mm)	D1 Rivet Head Dia (mm)	Settled Hole Dia (mm)	Settled Range (mm)	Staniless Steel		Steel
					Tensile (N)	Shear (N)	Tensile （N)	Shear (N)
3.2	6	6.2-6.4	3.3	1.0-3.0	2360	1875	1385	1160
	8			3.0-5.0
	10			5.0-7.0
	13			7.0-10.0
	15			10.0-12.0
4	6	8.0-8.2	4.1	1.0-2.5	3650	2890	2090	1650
	8			2.5-4.5
	10			4.5-6.5
	13			6.5-9.5
	15			9.5-11.5
	18			11.5-14.5
4.8	6	9.4-9.6	5	0.5-2.0	5335	4230	3020	24050
	8			2.0-4.5
	10			4.0-6.0
	13			6.0-9.0
	15			9.0-11.0
	18			11.0-14.0
	20			14.0-16.0
